Chetak R.O. Systems


Our Products




  • Wall Mounted MPI Technology Water Purifier.
  • DoublePurification by RO followed by UF.
  • Fully Automatic Operation.

Technical Specification

Purification Capacity		10 - 15 LPh
Tank Capacity 9 Ltr.
Power Consumption AC 220W DC 24V / 36V
TDS Reduction in (%) 90 - 96%
Dimension (mm) W310 x D229 x H415
MRP :- 14250.00/- (inclusive of all taxes)
Top



  • Wall Mounted MPI Technology Water Purifier.
  • Purification by RO + UF +TDS control.
  • Fully Automatic Operation.
  • Best Suited for Kitchen counter, water cooler and water dispenser.

Technical Specification

Purification Capacity		10 - 15 LPh
Power Consumption AC 220W DC 24V / 36V
TDS Reduction in (%) 90 - 96%
Dimension (mm) W355 x D220 x H480
MRP :- 11970.00/- (inclusive of all taxes)
Top

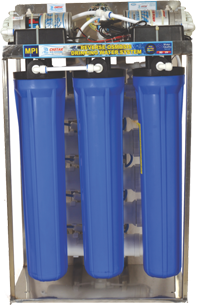

  • Wall Mounted MPI Technology Water Purifier.
  • Sutable for online purification for water coolers & water dispenser.
  • Fully Automatic Operation.
  • DoublePurification by RO + UF +TDS control.
  • Purification capacity of 50 Lph.

Technical Specification

Purification Capacity		50 LPh
TDS Reduction in (%) 90 - 96%
Dimension (mm) W450 x D285 x H755
50 Lph
MRP :- 54720.00/- (inclusive of all taxes)
_________________________________________________________
Also Available in Model
25 Lph
MRP :- 31920.00/- (inclusive of all taxes)

Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

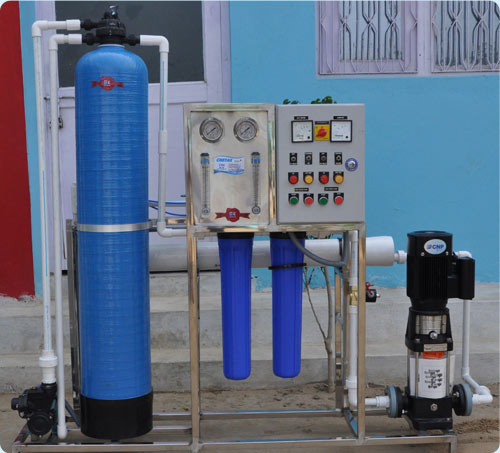

  • (1) Scope of Supply 250 Lph RO Plant


  • Skit 01 No.
  • Row Water Pump HP 01 No.
  • HIGH PRESSURE PUMP (2/11) 01 No.
  • Vessel 1054 01 No.
  • MPV FILTER 1054 01 No.
  • Carbon 12 kg
  • Send (multimedia Filter) 50 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 40x40 01 No.
  • Membrane Housing 40x40 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

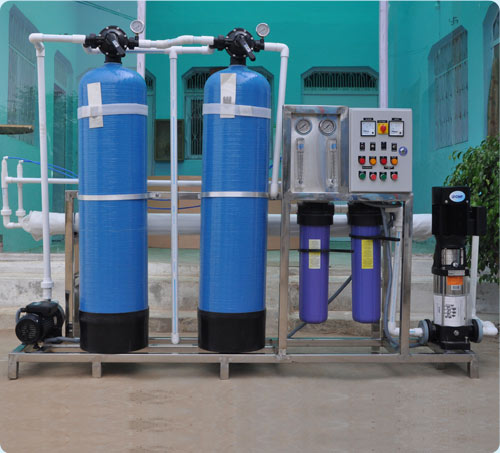

  • (2) Scope of Supply 500 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 1 HP 01 No.
  • HIGH PRESSURE PUMP (2/15) 01 No.
  • Vessel 1354 02 No.
  • MPV FILTER 1" 02 No.
  • Carbon 50 kg
  • Send (multimedia Filter) 200 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 40x40 02 No.
  • Membrane Housing 80x40 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (3) Scope of Supply 750 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 1 HP 01 No.
  • HIGH PRESSURE PUMP (2/15) 01 No.
  • Vessel 1354 02 No.
  • MPV FILTER 1" 02 No.
  • Carbon 50 kg
  • Send (multimedia Filter) 200 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 40x40 03 No.
  • Membrane Housing 80x40 01 No.
  • Membrane Housing 40x40 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

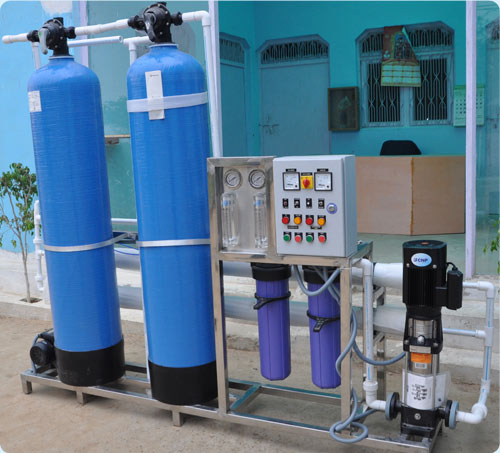

  • (4) Scope of Supply 1000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 1 HP 01 No.
  • HIGH PRESSURE PUMP (2/18) 01 No.
  • Vessel 1465 02 No
  • MPV FILTER 1" 02 No.
  • Carbon 75 kg
  • Send (Multimedia Filter) 250 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 40x40 04 No.
  • Membrane Housing 80x40(Corraction) 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (5) Scope of Supply 1500 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 1 HP 01 No.
  • HIGH PRESSURE PUMP (2/18) 01 No.
  • Vessel 1465 02 No
  • MPV FILTER 1" 02 No.
  • Carbon 75 kg
  • Send (Multimedia Filter) 250 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 40x40 06 No.
  • Membrane Housing 80x40 03 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

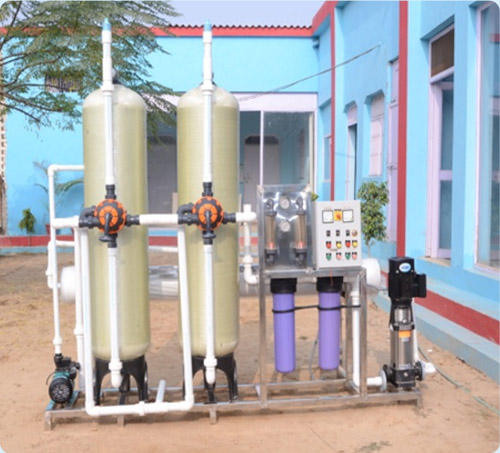

  • (6) Scope of Supply 2000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 2 HP 01 No.
  • HIGH PRESSURE PUMP (4/16) 01 No.
  • Vessel 1665 02 No
  • MPV FILTER 1.5" 02 No.
  • Carbon 75 kg
  • Send (Multimedia Filter) 350 kg
  • Spun PP 20"X4.5" 02 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 80x40 01 No.
  • Membrane Housing 80x80 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

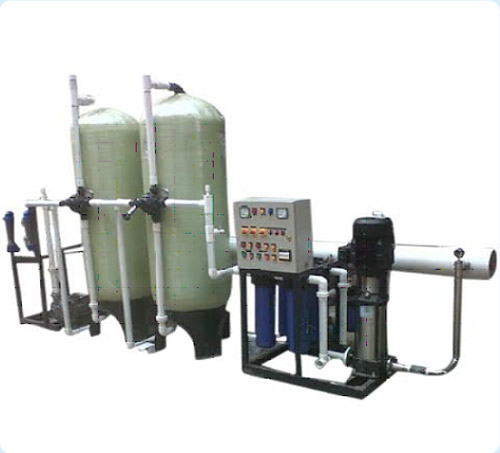

  • (7) Scope of Supply 3000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 2 HP 01 No.
  • HIGH PRESSURE PUMP (4/22) 01 No.
  • Vessel 1865 02 No
  • MPV FILTER 1.5" 02 No.
  • Carbon 75 kg
  • Send (Multimedia Filter) 350 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1.5") 04 No.
  • Membrane 80x40 03 No.
  • Membrane Housing 80x120 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (8) Scope of Supply 4000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 2 HP 01 No.
  • HIGH PRESSURE PUMP (5/29) 8/12 No.
  • Vessel 2472 02 No
  • MPV FILTER 1.5" 02 No.
  • Carbon 150 kg
  • Send (Multimedia Filter) 700 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 80x40 04 No.
  • Membrane Housing 80x80 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (9) Scope of Supply 5000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 2 HP 01 No.
  • HIGH PRESSURE PUMP (5/29) 8/12 No.
  • Vessel 2472 02 No
  • MPV FILTER 1.5" 02 No.
  • Carbon 150 kg
  • Send (Multimedia Filter) 700 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1") 02 No.
  • Membrane 80x40 05 No.
  • Membrane Housing 80x80 01 No.
  • Membrane Housing 80x120 01 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting low UPVC & high S.S.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

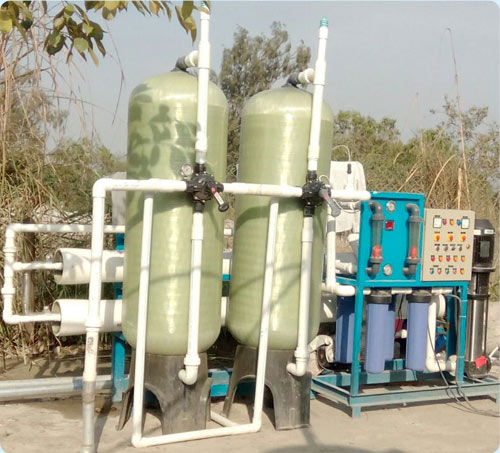

  • (10) Scope of Supply 6000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 01 No. (Capacity 12 m3 at 25 meter head)
  • HIGH PRESSURE 01 No. ( Capacity 12 m3 at 120 meter head Power 505 Kw.)
  • Vessel 2472 ( Flow Rate 02 No. 12000 Liter per hour )
  • MPV FILTER 1.5" 02 No.
  • Carbon 200 kg
  • Send (multimedia Filter) 400 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1.5") 04 No.
  • Membrane 80x40 06 No.
  • Membrane Housing 80x40 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 02 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All Fitting UPVC 01 No.
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (11) Scope of Supply 8000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 01 No. (Capacity 12 m3 at 30 meter head)
  • HIGH PRESSURE 01 No. (Capacity 20m3 at 120 meter head Power 505 Kw.)
  • Vessel 3672 02 No ( Flow Rate 18000 Liter per hour )
  • MPV FILTER 2" 02 No.
  • Carbon 300 kg
  • Send (Multimedia Filter) 1500 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1.5") 04 No.
  • Membrane 80x40 08 No.
  • Membrane Housing 80x320 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All fitting low UPVC / High- S.S
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.

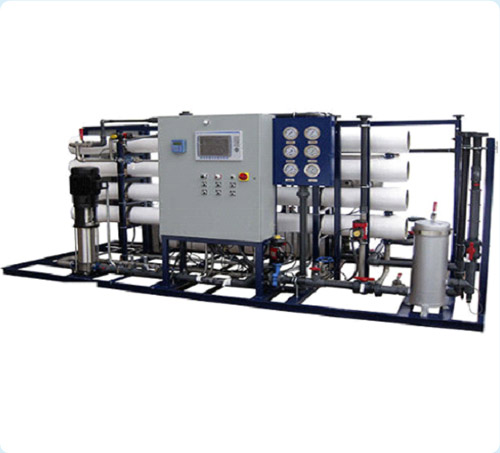

  • (12) Scope of Supply 10000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 01 No. (Capacity 12 m3 at 30 meter head)
  • HIGH PRESSURE 01 No. (Capacity 20m3 at 120 meter head Power 505 Kw.)
  • Vessel 3672 02 No ( Flow Rate 18000 Liter per hour )
  • MPV FILTER 2" 02 No.
  • Carbon 300 kg
  • Send (Multimedia Filter) 1500 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1.5") 04 No.
  • Membrane 80x40 10 No.
  • Membrane Housing 80x400 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All fitting low UPVC / High- S.S
  • All Nut Bolt (S.S.)
Top



  • Suitable for Hotels, Restaurant,Resorts,Institution & Industries.
  • (13) Scope of Supply 12000 Lph RO Plant
  • Skit 01 No.
  • Row Water Pump 01 No. (Capacity 12 m3 at 30 meter head)
  • HIGH PRESSURE 01 No. (Capacity 20m3 at 120 meter head Power 505 Kw.)
  • Vessel 3672 02 No ( Flow Rate 18000 Liter per hour )
  • MPV FILTER 2" 02 No.
  • Carbon 300 kg
  • Send (Multimedia Filter) 1500 kg
  • Spun PP 20"X4.5" 04 No.
  • HOUSING BIG BLUE 20" (1.5") 04 No.
  • Membrane 80x40 12 No.
  • Membrane Housing 80x120 02 No.
  • Flow Meter 02 No.
  • Pressure Gauge 04 No.
  • LPS 01 No.
  • Box Panel 01 No.
  • All fitting low UPVC / High- S.S
  • All Nut Bolt (S.S.)
